Description

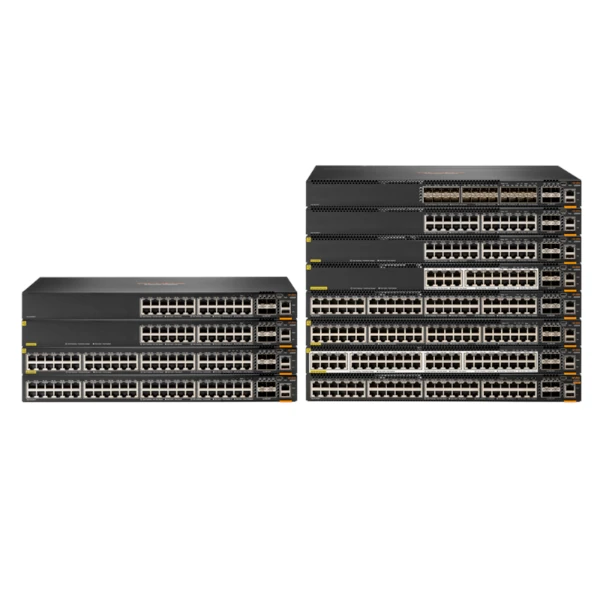

CX 6300 Overview: The Aruba CX 6300 Series delivers high-performance stackable Layer 3 switches designed for enterprise networks data centers and branch offices. These switches are optimized for robust secure and scalable networking with advanced features. Datasheet Aruba CX 6300 Switch Series models: Model Aruba JL658A Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch Aruba JL659A Aruba 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch Aruba JL660A Aruba 6300M 24-port HPE Smart Rate 1/2.5/5GbE Class 6PoE and 4-port SFP56 Switch Aruba JL661A Aruba 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch Aruba JL662A Aruba 6300M 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch Aruba JL663A Aruba 6300M 48-port 1GbE and 4-port SFP56 Switch Aruba JL664A Aruba 6300M 24-port 1GbE and 4-port SFP56 Switch Aruba JL762A Aruba 6300M 48-port 1GbE and 4-port SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle Aruba JL665A Aruba 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch Aruba JL666A Aruba 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch Aruba JL667A Aruba 6300F 48-port 1GbE and 4-port SFP56 Switch Aruba JL668A Aruba 6300F 24-port 1GbE and 4-port SFP56 Switch   CX 6300 Models Specifications Aruba JL658A Model : Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch Ports : 24x 1G/10G SFP+; 4x 1/10/25G SFP (50G DAC capability) Power Supply : 2 hot-swappable slots (1 required order separately) Fan Trays : 2 hot-swappable (included) Dimensions : 4.4 cm x 44.2 cm x 38.5 cm (1.73″ x 17.4″ x 15.2″) Weight : 5.8 kg (12.78 lbs) Aruba JL659A Model : Aruba 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch Ports : 48x 100M/1G/2.5G/5GBaseT Class 6 PoE; 4x 1/10/25G SFP (50G DAC capability) Power Supply : 2 hot-swappable slots (1 required order separately) PoE Power : Up to 2880W Class 6 Fan Trays : 2 hot-swappable (included) Dimensions : 4.4 cm x 44.2 cm x 38.5 cm (1.73″ x 17.4″ x 15.2″) Weight : 6.71 kg (14.8 lbs) Aruba JL660A Model : Aruba 6300M 24-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch Ports : 24x 100M/1G/2.5G/5GBaseT Class 6 PoE; 4x 1/10/25G SFP (50G DAC capability) Power Supply : 2 hot-swappable slots (1 required order separately) PoE Power : Up to 1440W Class 6 Fan Trays : 1 hot-swappable (included) Dimensions : 4.4 cm x 44.2 cm x 38.5 cm (1.73″ x 17.4″ x 15.2″) Weight : 6.06 kg (13.36 lbs) Aruba JL661A Model : Aruba 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch Ports : 48x 10/100/1000BaseT PoE+; 4x 1/10/25G SFP (50G DAC capability) Power Supply : 2 hot-swappable slots (1 required order separately) PoE Power : Full redundancy with two 1600W PSUs Fan Trays : 1 hot-swappable (included) Dimensions : 4.4 cm x 44.2 cm x 38.5 cm (1.73″ x 17.4″ x 15.2″) Weight : 5.72 kg (12.61 lbs) Aruba JL662A Model : Aruba 6300M 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch Ports : 24x 10/100/1000BaseT PoE+; 4x 1/10/25G SFP (50G DAC capability) Power Supply : 2 hot-swappable slots (1 required order separately) PoE Power : Full redundancy with two 1600W PSUs Fan Trays : 1 hot-swappable (included) Dimensions : 4.4 cm x 44.2 cm x 38.5 cm (1.73″ x 17.4″ x 15.2″) Weight : 5.55 kg (12.23 lbs) Aruba JL663A Model : Aruba 6300M 48-port 1GbE and 4-port SFP56 Switch Ports : 48x 10/100/1000BaseT; 4x 1/10/25G SFP (50G DAC capability) Power Supply : 2 hot-swappable slots (1 required order separately) Fan Trays : 1 hot-swappable (included) Dimensions : 4.4 cm x 44.2 cm x 38.5 cm (1.73″ x 17.4″ x 15.2″) Weight : 5.51 kg (12.14 lbs) Aruba JL664A Model : Aruba 6300M 24-port 1GbE and 4-port SFP56 Switch Ports : 24x 10/100/1000BaseT; 4x 1/10/25G SFP (50G DAC capability) Power Supply : 2 hot-swappable slots (1 required order separately) Fan Trays : 1 hot-swappable (included) Dimensions : 4.4 cm x 44.2 cm x 38.5 cm (1.73″ x 17.4″ x 15.2″) Weight : 5.43 kg (11.97 lbs) Aruba JL762A Model : Aruba 6300M 48-port 1GbE and 4-port SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle Ports : 48x 10/100/1000BaseT; 4x 1/10/25G SFP (50G DAC capability) Power Supply : 2 hot-swappable slots includes 1 Power-to-Port supply (JL760A) Fan Trays : 2 hot-swappable (included) Dimensions : 4.4 cm x 44.2 cm x 38.5 cm (1.73″ x 17.4″ x 15.2″) Weight : 5.7 kg (12.5 lbs) with 1 PSU; 6.27 kg (13.8 lbs) with 2 PSUs Aruba JL665A Model : Aruba 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch Ports : 48x 10/100/1000BaseT PoE+; 4x 1/10/25G SFP (50G DAC capability) Power Supply : Fixed internal 950W PoE Power : Up to 720W Dimensions : 4.39 cm x 44.2 cm x 32.7 cm (1.73″ x 17.4″ x 12.9″) Weight : 5.10 kg (11.24 lbs) Aruba JL666A Model : Aruba 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch Ports : 24x 10/100/1000BaseT PoE+; 4x 1/10/25G SFP (50G DAC capability) Power Supply : Fixed internal 950W PoE Power : Up to 370W Dimensions : 4.39 cm x 44.2 cm x 32.7 cm (1.73″ x 17.4″ x 12.9″) Weight : 4.95 kg (10.91 lbs) Aruba JL667A Model : Aruba 6300F 48-port 1GbE and 4-port SFP56 Switch Ports : 48x 10/100/1000BaseT; 4x 1/10/25G SFP (50G DAC capability) Power Supply : Fixed internal 200W Dimensions : 4.39 cm x 44.2 cm x 32.7 cm (1.73″ x 17.4″ x 12.9″) Weight : 4.46 kg (9.83 lbs) Aruba JL668A Model : Aruba 6300F 24-port 1GbE and 4-port SFP56 Switch Ports : 24x 10/100/1000BaseT; 4x 1/10/25G SFP (50G DAC capability) Power Supply : Fixed internal 200W Dimensions : 4.39 cm x 44.2 cm x 32.7 cm (1.73″ x 17.4″ x 12.9″) Weight : 4.36 kg (9.61 lbs) CX 6300 Features: Stackable Layer 3 switches with BGP EVPN VXLAN VRF and OSPF with robust security and QoS High performance 880 Gbps system switching capacity 660 MPPS of system throughput and up to 200 Gbps stacking bandwidth Compact 1U switches with full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit 60W PoE and SFP+ models Power-to-port switch bundle with back-to-front airflow ideal for data center 1GbE ToR and OOBM deployments Built-in high speed 10GbE/25GbE uplinks1 (50GbE1 transceiver capability will be enabled in future software release) 50GbE connectivity with 50GbE DACs1 Intelligent monitoring visibility and remediation with Aruba Network Analytics Engine Manage via a single pane of glass with Aruba Central across wired wireless and WAN Aruba NetEdit support for automated configuration and verification Aruba Dynamic Segmentation enables secure and simple access for users and IoT
