Description

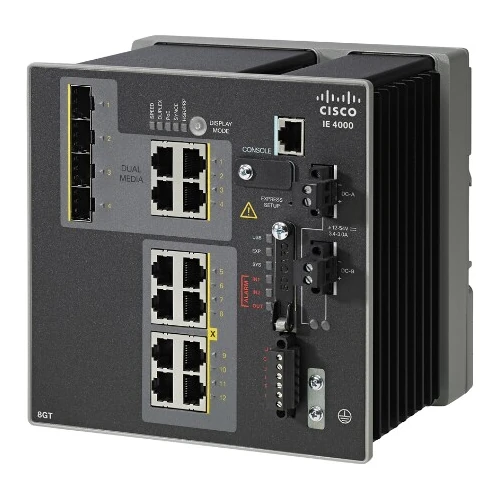

IE-4000-8GT8GP4G-E Overview: The IE-4000-8GT8GP4G-E is part of the Cisco ONE Industrial Ethernet (IE) 4000 Series Platform. It features 8 RJ45 ports supporting 10/100/1000 Mbps Ethernet all with Power over Ethernet (PoE) capabilities. Additionally it includes 4 combo ports supporting Gigabit Ethernet allowing for flexible connectivity options. IE-4000-8GT8GP4G-E specifications: Physical Specification: Total Ports: 20 GE Combo Uplinks (4G): 4 GE combo uplink ports Combo ports provide one copper and one fiber physical port; only one can be activated at a time. RJ-45 Copper Ports (T): 8 GE PoE/PoE+ Ports (P GP) Maximum PoE Power Budget: 8GE 240W Default Software: LAN Base feature set (Can be upgraded to IP Services at a fee.) Hardware: 1GB DRAM 128-MB onboard flash memory 1-GB removable SD flash memory card Mini-USB connector RJ-45 connector Alarm: Alarm I/O: Two alarm inputs to detect dry contact open or closed one alarm output relay Power Input: Redundant DC input voltage with operating range: Nominal 9.6 to 60VDC Maximum DC input current: 4.3A Dimensions: Height x Width x Depth: 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) Weight: 6.35 pounds (2.88 kg) Switch Performance and Scalability: Forwarding Rate: Line rate for all ports and all packet sizes Number of Queues: 4 egress Unicast MAC Addresses: 16000 IGMP Multicast Groups: 1000 Number of VLANs: 1000 IPv4 MAC Security ACEs: 1000 with default TCAM Template NAT Translation: Bidirectional 128 unique subnet NAT translation entries expandable to tens of thousands of translated entries with proper design.
